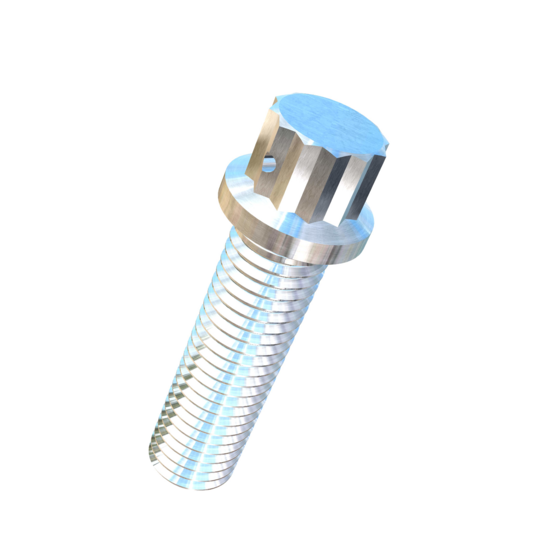

| 1/4-28 Pitch X 7/8 inch, 12 point Flange Head Allied Titanium Bolt with safety wire drilled head, Grade 5 (Ti-6Al-4V) Titanium with Unpolished Finish |
 |
| |
Also known as a ferry cap screw, a twelve point flange bolt offers an alternative head design for a standard hex bolt. The twelve point design permits greater torque to be applied to the screw and reduces rounding out of the hex head that sometimes occurs with standard hex cap screws. A flange built into the bottom of the head also greatly distributes the bearing load and acts as a non spinning washer.
Titanium 12 point flange bolts will remain corrosion free in the natural environment perpetually. Not only are they corrosion proof, titanium 12 point flange bolts are stronger as well. A grade 5 (6Al-4V) titanium bolt has a yield strength of 128,000 PSI, approximately 3 and a half times as stronger than 316 stainless steel. Plus they weigh only about half as much as stainless steel.
These twelve point flange bolts are TRUE TITANIUM(TM). TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc. |
|
| $10.37 |
| Each |
| 200 |
| 2000 |
| 9.02 |
| 5000 |
| 7.67 |
| |
Please call (800) 725-8143 or (302) 249-3295 if you need help. |
|
| 0.0039 |
| Inches |
| 0.25 |
| 28 |
| 0.875 |
| Fasteners |
| Fastener, Bolt |
| 12 point Flange Bolt |
| 2 |
| +0/-0.010 inch |
| Ti5FB12FBI0.25-28X0.875U2 |
|
| Bolt, 12 point Flange, Grade 5 Titanium (No Dimple) |
|
|
|
|
